pop’s ’69 Barracuda



My Fender Tag

  1. M31 R11 V78  END

  2. A01  B51  G11  G33  L31  M21

  3. B5*B5   H4B  B5  A22  158110

  4. E44  D31



  7. Model                Body Style      Trans               Engine       Produced      w/ Delete Stripe

  8. 1969 Barracuda   2 DR S/HDTP    Auto                318-2          7451                500



  11. 1969 Plymouth Barracuda

  12. 2 Door Fastback Sports Hardtop



  15. Assembled at Assembly Plant B / Dodge Main, Hamtramck, MI, USA (Belvedere, MI.)

  16. A22 = Scheduled Production Date: October 22, 1968

  17. Factory shipping weight  2899 lbs.



  20. 182319:Sequence number: 82,318th vehicle built at the factory.

  21. 158110:Order number



  24. Make            B = Plymouth Barracuda

  25. Price Class   H = High

  26. Body Type  29 = 2 Door Sports Hardtop



  29. Equipment Codes

    E44:           318 cid 2 barrel V8 230hp

    D31:          A904 3-Speed Auto Transmission

    B5:            Bright Blue Metallic Exterior Color, (Blue Fire Poly Metallic Body Color) - 1969

    B5:            Trim - Basic, Vinyl Seats, Medium Blue Vinyl Bench Seat: B5 Med. Blue - #338

    H4B:          Interior Accent Colors

                          Upper Door Frames Paint Color: B5 Medium Blue

                          Seat Insert, Bolster, Headliner: B5 Medium Blue

                          Carpet: B7 Dark Blue

                          Dash Pad, Steering Column, Steering Wheel: B7 Dark Blue

    A22:           Scheduled Production Build Date: October 22, 1968

                      (every part that has a date code has to precede the date of Oct. 22, ’68)



    A01:           Light Package

                            Hood Mounted Turn Signals, Headlights on Warning Signal, Trunk,

                            Map Light, Glove Box, Ash Tray, Time Delay Ignition Lights



  1. Optional Equipment Codes

  2. B51             Power Brakes

  3. G11            Tinted Glass

  4. G33            OS LH Remote Standard Mirror, Pedestal Style (not racing type)

  5. L31             Hood / Fender Mounted Turn Signals

  6. M21            Roof Drip Rail Moldings


  8. M31            Belt & Hood Moldings

  9. R11             AM Radio

  10. V78             Delete Painted Stripe

  11. END:           End of Sales Codes



  14. Body:

  15. My car is has a Plymouth ’67-’69 Barracuda A-Body

  16. I have a Body Numbers Matching Car. This implies that it has the same number on the radiator support and trunk lid lip. The Trunk Lip is punched and matches the Vin.


  18. B9  182319

  19. B            = Assembly Plant B / Dodge Main, Hamtramck, MI,

  20. 9            = 1969

  21. 182319  = Vin #



  24. Engine:

  25. F9               318 V8 engine - 2 bbl  230hp “LA”, built in 1969

  26.                The series was built 1967-75 LA  318-13

  27.                This block was cast Feb, 1970

  28.                This block was built March 3-10, 1970



  31. Year  Engine    Bore           Vin#Short Block      Complete        Block Casting No.

  32. 1967-75  318 5.2    3.91 F/G226200  220210          2806030           2536030


  34. Crank Forging             Head Casting            Crank Kit No.

  35. 2843868 2128869     2843675    2658920     23135


  37.     Engine color for 318 V8 - LA  in ‘67-’69   RED   Part #P4349218



  40. Intake Manifold

  41.    Cast no.             2951185  D1

  42.    Part no.

  43.    Cast Date           1970-71

  44.    Replaced with EDELBROCK Intake Manifold Performer EDL-2176



  47. Exhaust Manifold

  48.    Cast no.                   2843953        39328  3

  49.    Part no.                    2730945

  50.    Cast Date  2088       July 26, 1968

  51.    Replaced with TTI Silver Exhaust Headers



  54. Engine Accessories Added:

  55.     EDELBROCK 4 Barrel Carburetor Thunder AVS  EDL-1806

  56.     MSD Electronic Distributor, Pro-Billet Ready-to-Run  MSD-8388

  57.     FLOWKOOLER Water Pump

  58.     MILODON Oil Pickup



  61. Radiator - 22”

  62.    Cast no.                    2785973

  63.    Cast Date                 1967

  64.    Restored by Glen-Ray Radiators, Wisconsin



  67. Suspension

  68.     Mopar K-Frame Specifications for a ‘69 A-Body Engine 318  Part #2925976 (Powder coated black)

  69.     Heavy Duty Suspension

  70.     Torsion Bars - 892/893



  73. Transmission     A904    3-Speed Auto Trans.

  74. I have a Numbers Matching Transmission. Number is on the passenger side of the tranny.


  76. Transmission Part #

  77. PK2892080Z  2634 4449 located on drivers side of tranny.


  79. PK           = Kokomo Transmission Plant

  80. 2892080 = Part number

  81. Z             = A904?

  82. 2634       = build date  Sep. 20, 1968

  83. 4449       = sequential serial number (4449 transmissions built that day)


  85. Transmission case (body) casting #

  86. Part casting no = 2392764 - 5


  88. Transmission Date Code

  89. There are 12 boxes that represent the month of the year. There are 5 boxes "checked" with dots for the 5th month (May).

  90. There is a "faint" 68 which represents the year (1968) it was cast.


  92. Speedo Adapter has a black 29 tooth pinion gear. The rear end is a 2.94 ratio and tire height is 27”.



  95. Rear End:

  96.     7.25                          9 Bolt Cover Pattern

  97.     D52 Axle Ratio         2.76 : 1  (Original)

  98.     D51 Axle Ratio         2.93 : 1  (Replacement from a '69 Dart)

  99.     Cast no.                    2070051

  100.     Cast Date  812          June 24 - 30, 1967


  102.     Axle Dimensions:     Flange to Flange                                                                53.20”

  103.                                     Leaf Spring Centerline to Leaf Spring Centerline                43.02”

  104.                                     Axle Shaft Centerline to Rear Universal Joint Centerline    10.09”



  107. Drive Shaft:

  108.                                     for 904 tranny, 7.25 diff., 318 engine

  109.                                     Part # 2533192

  110.                                     Diameter  2.75”

  111.                                     Length      51.42”



  1. Brakes

  2. Front Drums          10”

  3. Front Drum Shoes  10” x 2.25”        Replacement shoes  #322

  4. Rear  Drums           10”

  5. Rear  Drum Shoes  10” x 1.75”        Replacement shoes  #


  7. Adjustable Proportioning Valve



  1. Tires:

  2. B.F. Goodrich   215/60/15  Front

  3.                          255/60/15  Rear     27” high

  4. Spare - Firestone Red Streak  E70 x 14 (Original style)



  1. Heater Motor

  2.    Cast no.                    2837678   42166

  3.    Cast Date  3028       October 28, 1968


  5.     2837678 = HTR MOTOR, SILVER, 3-3/8 DIAMETER

  6.     (SA OR INT W/ ORIG EQPT: 68-69  COMPACT)



Vehicle Registration

  1. The Barracuda is registered in the MMC Detroit LLC Global Vehicle Registry under # 0820-35,360.


  3. The vehicle title and registration are in the state of California.

  4. The vehicle license plate is the original one dating from November, 1968.




Ray Vines Chrysler-Plymouth Dealership





  3. My father purchased the car brand new in Nov. 1968 from

  4. the Ray Vines Chrysler-Plymouth dealership in Long Beach

  5. located at the corner of Willow Ave. and Lakewood Blvd.

  6. He paid $2999.00

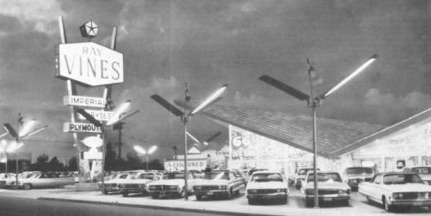

  16.     The dealership was built in 1963. The building is a great example of "Goggie" design by the architect

  17.     Paul B. Clayton. With its complex “flying V” sharply angled roofline soaring skyward, the Ray Vines

  18.     Chrysler building was unquestionably eye-catching, which may explain why it was a successful car

  19.     dealership for many years. It had polished terrazzo floors and large floor-to-ceiling display windows.



  22.     Ray Vines closed the

  23.     dealership in 1969 after a

  24.     dispute with Chrysler

  25.     Corp. R.O. Gould

  26.     Chrysler-Plymouth took

  27.     over in in 1969. The

  28.     former dealership's today

  29.     is a mini-mall and

  30.     carwash. On the side of

  31.     the “Googie” structure is a

  32.     large photo-mural of the

  33.     building as the former Ray

  34.     Vines / R.O. Gould

  35.     Chrysler-Plymouth

  36.     dealership.

  37.


What you should know born Oct. 1968 Died Nov. 1994 Resurrected Feb. 2019 Engine 318 cu. in. Interior B5 Medium Blue Vinyl - #338 B7 Dark Blue Dash B7 Dark Blue Carpet B7 Dark Blue Steering Wheel Exterior Color B5 Blue Metallic ’69 cuda Production figures Totals: Fastback Shipped - 17,788 318 Automatic - 7,451 Bench Seat w/318 - 2080 Deleted Stripes - 500 % Painted B5 Blue - 10% Owners of this Car Angel Garrido, Sr. Angel Garrido, Jr. Alfredo Garrido Angela Garrido Number of Miles 146,000 Original Miles YEAR OF RESTORATION ENGINE - BEGAN 2009 disassembly - Began 2016 BODY - BEGAN 2017 Suspension - Began 2017 Paint - Began 2018 Rebuild - Began 2018 Interior - Began 2019 RESTORATION GOAL RESTORE CAR TO ORIGINAL OEM Condition My Latest Photos  Upgrades 1970 Crate 318 engine MSD Electronic Distributor Edelbrock Intake Edelbrock 4 Barrel Carburetor PST Suspension Bushings New Leaf Springs New Wheel & Axle Bearings TTI 2 1/2” Exhaust System Mopar 22” Radiator OEM Tachometer Legendary Interior Radio Converted to AM/FM 15x7 - 15x8 Cragar SS Wheels 14. 215/60/15 Goodrich (Front) 15. 255/60/15 Goodrich (Rear)

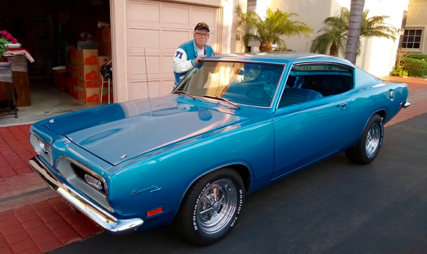

all about my ’69 Cuda

My father, purchased the car brand new in Nov. 1968 from the Ray Vine Chrysler-Plymouth dealership in Long Beach at the corner of Willow and Lakewood Blvd. The car has been in our family ever since. I was a teenager when my dad got the car.

It was the first car I ever drove. I took my drivers test in it, I went to the prom with it and even had fun in the back (wink)! The car passed to my brother, my daughter and back to me. My father passed away in 2001. I rebuilt it to honor and remember my father. I restored it back to the way it was when my dad drove it off the lot. I will pass it on to my grandson, Gavin, when I leave this earth.


In 1984, my father had to replace the 1968 built 318 cu. in. engine. He couldn’t find a good used one so his mechanic replaced it with one built in 1970. To work, 1970 parts had to be matched, (i.e. radiator, hoses, etc.).


For a time, the car was driven by my brother with some modifications. My dad fixed the engine again and it was given a superficial paint job in 1989. My daughter then got the car and kept it for a couple of years. After a problem with the differential developed, I obtained it in 1994, and it sat in my garage for 15 years.


In 2009 I finally decided to get serious about the car. I bought a new crate 318 engine and put it in, but never ran it. Because of a divorce, lack of funds and other problems, I did not seriously work on the car for another 7 years.


During those 7 years, I watched TV restoration shows, and I got the bug. Finally I began in earnest to restore my beauty.


On Feb.  12, 2016, I began disassembling the car.

On Feb.  27, 2017, I finished disassembling the car.

On Mar. 28, 2017, the body was chemically stripped.

On Jun.  19, 2017, body metal work began.


Between Apr. 2017 and Aug. 2018, the rear end, transmission, engine, front suspension, dash, steering, radiator, fuel system, brakes and upholstery were rebuilt. This was a complete rotisserie restoration. Literally, every screw, nut and bolt has been touched.


On Jun.   4, 2018, final blocking and sanding began.

On Jul.  16, 2018, painting began.

On Jul.  30, 2018, reconstruction began.

On Feb. 22, 2019, the car was delivered.

On Feb. 26, 2019, interior work began.

On Sep. 10, 2019, the car was officially finished.

On Sep. 22, 2019, I won my first award, “Best Muscle Car”.


2019 was the 50th anniversary of the car being bought new.

It had been 25 years since the car was on the road. And it

took 3 1/2 years to restore the car to a working vehicle.

Great day indeed!


Angel Garrido
